NOMENCLATURE FOR THE SILENT CHAIN

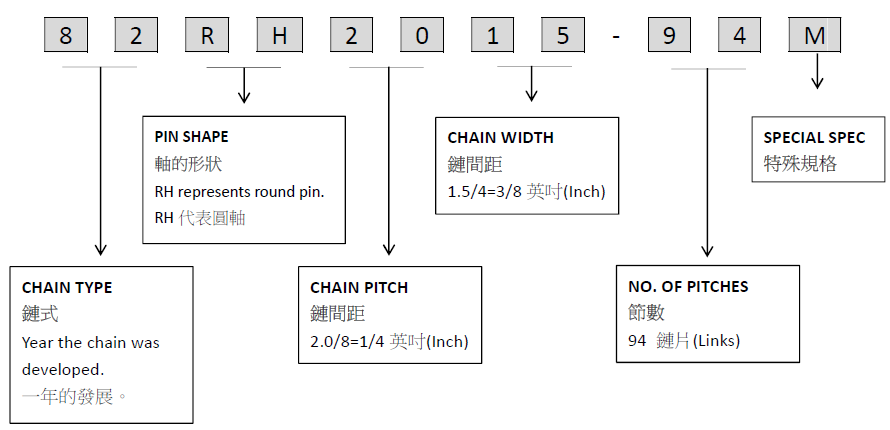

Nomenclature method is explained below talking the Silent Chain No.82RH2015-94M for an example.
下面以無聲鏈No.82RH2015-94M為例說明命名。
82:Chain type-Year the chain was developed.
RH:PIN shape-RH represents round pin.
20:Chain pitch-2.0/8=1/4 inch
15:Chain width-1.5/4=3/8 inch
94:No. of pitches-94 Links
M:Special spec.
82:鏈式-鏈條出產年
RH:軸的形狀-代表圓軸
20:鏈間距-2.0/8=1/4 英吋
15:鏈間寬-1.5/4=3/8 英吋
94:節數-94 個鏈片
M:特殊規格
