引擎鏈條 Engine chain
-
2,067
2018/02/12
引擎鏈條 Engine chain
2,067

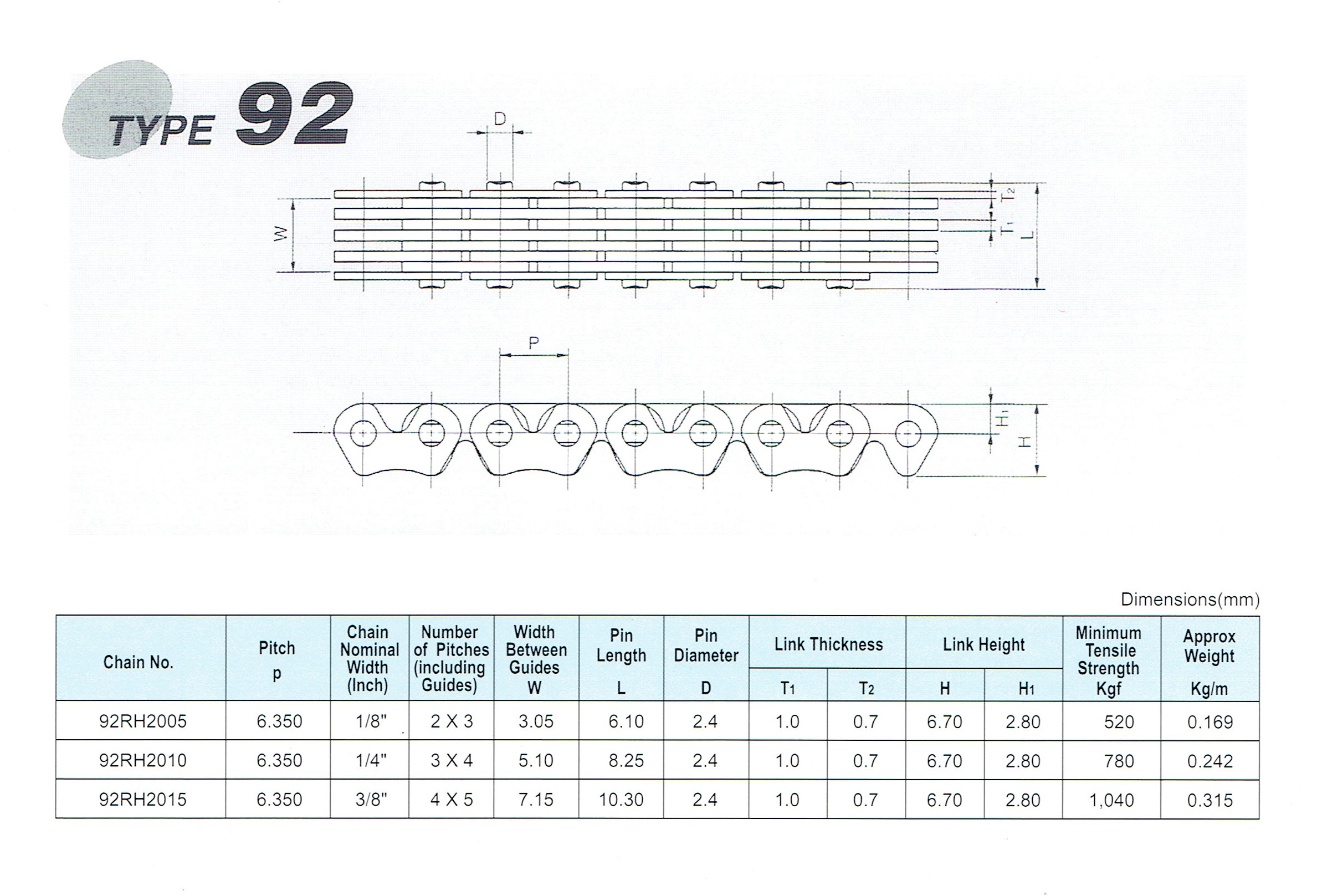

Chain No. |P|Chain Normal Width(Inch)|Number of Pitches(including Guides)|Width Between Guides W|Pin Length L|Pin Diameter D|Link Thickness T1|T2|Link Height |H1|Minimum Tensile Strength Kgf|Approx Weight Kg/m
92RH2005|6.350|1/8"|2x3|3.05|6.10|2.4|1.4|0.7|6.70|2.80| 520|0.169
92RH2010|6.350|1/4"|3x4|5.10|8.25|2.4|1.0|0.7|6.70|2.80| 780|0.242
92RH2015|6.350|3/8"|4x5|7.15|10.3|2.4|1.0|0.7|6.70|2.80|1040|0.615
